Snap-Tite 6C & 3C Series Check Valves
Snap-Tite S6C / 3C Series单向阀
Soft Seat In-Line Check Valves Up to 2” Size, Steel / Stainless, Male and Female Fitting Ends - S6C / 3C Series


S6C / 3C Series可提供阀座（几乎零泄露），导向提升阀等，他们具有多种终端连接、弹性密封和316不锈钢结构，所以该产品可用于多种系统。此外， Snap-tite 6C & 3C Series单向阀在最高工作压力下6000 PSI / 414Bar下安全系数设定为4:1，因此应用更加广泛。

Parker Snap-tite 6C & 3C Series单向阀

特点和优势

- 提升阀 软密封
- 碳钢或不锈钢结构；也可提供其他材质
- 流速达175GPM,662L/M
- 可提供SAE、NPSF、NPT、BS2779和ORS等连接形式
- 工作压力可达6000PSI ; 尺寸 1/4’’ 、3/8’’、 3/4’’和1’’
- 工作压力可达3000 psi 尺寸 1-1/4’’、1-1/2’’和2’’

用途
- 泵口和蒸汽应用
- 增压压缩机
- 冷却水
- 空气干燥器和仪表空气管线
- 燃料储存罐

SNAP-TITE S6C & 3C Series Check Valves

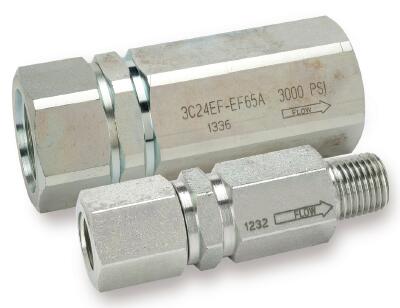

SNAP-TITE S6C and 3C Soft Seat Check Valves

SNAP-TITE S6C and 3C check valves have a variety of options enabling them to meet the needs of most systems. The soft seated poppet creates a leak free seal to protect hydraulic systems from reverse flow.

S6C check valves are stainless steel with a rated pressure of 6000 psi (sizes 1/4”, 3/8”, 1/2”, 3/4” & 1”). 3C check valves are steel with a rated pressure of 3000 psi (sizes1-1/4”, 1-1/2” & 2”).

These in-line unidirectional valves are available in sizes 1/4” to 2”. Standard spring crack pressures are shown in the part number table. Other crack pressures available upon request.

SNAP-TIE S6C Series Part Numbers

S6C4F-F*
S6C4F-M*
S6C4M-M*
S6C6F-F**
S6C6F-M*
S6C8F-F*
S6C8M-F*
S6C8M-M*
S6C12F-F*
S6C16F-F*
3C Series Part Numbers
3C20F-F**
3C20EF-EF**
3C20EM-EM**
3C24F-F**
3C24EF-EF**
3C32EF-EF**

PARKER派克单向阀

- 派克PARKER Snap-Tite 6C / 3C 内置单向阀
- 派克PARKER Snap-Tite CAC液控单向阀
- 派克PARKER Snap-Tite CAD双液控单向阀
- 派克PARKER Snap-Tite CAV单液控单向阀
- 派克PARKER Snap-Tite CPIFF直通单向阀
- 派克PARKER Snap-Tite CPC插装式单向阀
- CV系列 内置单向阀 3000 PSI
- DV系列 内置单向阀 5000 PSI

Snap-Tite S6C and 3C Series Check Valves (up to 6,000 psi) are soft seat, zero leakage poppet check valves with a two piece construction. The two piece construction allows for a variety of end fitting combinations.

Snap-Tite check valves have various standard crack pressures and flow rates up to 175 gpm. The S6C & 3C Series valves are available in a range of sizes and steel or stainless steel materials for flow capacities up to 175 gpm.

Snap-Tite Check valves are important components that are often overlooked when building a fluid system. A check valve can optimize system performance in the following ways:
- Ensure hydraulic fluid flows in only one direction
- Eliminate potential damage from back pressure
- Isolate sections of a system or system components

Basic check valve construction consists of a valve body with an inlet and an outlet port. Inside, a moveable poppet valve is controlled by spring pressure. In most cases the valve is normally closed, opening when the fluid pressure is greater than the spring force (crack pressure), thus allowing the fluid to flow in only one direction. When reverse flow attempts to enter though the outlet the poppet closes and flow through the valve is stopped.

Soft seat check valves have an O-ring or similar elastomeric seal between the poppet and body for improved leak resistance. The soft seat design is most compatible with ""clean” systems and is not indented for use in systems that have high surge flow. The seal material dictates the temperature range of the valve.

Snap-Tite Technical Characteristics:
- Sizes: 1/4”to 2”
- Materials: Steel, Stainless Steel, Brass
- Seal Material: Fluorocarbon
- Standard Crack Pressures (psi): 5, 15, 25, 65
- Inlet Port Ends: Male NPT, Male 37 degree flare, Male Face Seal, Female NPTF, Female SAE, Female British Parallel BS 2779
- Outlet Port Ends: Male NPT, Female NPTF, Female SAE, Male SAE 37 degree Flare, Male Face Seal, Female British Parallel BS 2779
- Optional crack pressures available
- Orificed valve option
- Custom shapes and configurations

Note: Some options may not be standard configurations. Please contact the Quick Coupling Division for availability and delivery.

Markets:
- Industrial
- Construction
- Agriculture
- Transportation
- MRO

Features/Benefits:
- Allows the fluid to flow in only one direction, protecting the system from fluid back pressure
- Soft seated valve creates a leak free seal
- Fluorocarbon seal is standard
- Optional crack pressures are available on request
- Optional orificed valve allows metered flow when the valve is closed. Orifice bore size is determined by application requirements.
- Custom shapes and configurations can integrate special features to reduce the number of components and potential leak points in a system

Applications:
- Industrial, mobile, and construction equipment
- Restrictor Check Circuit
- High/Low Pump Circuit
- Slow Advance/Rapid Return Circuit
- Oil Cooler By-Pass Circuit
- Sequence Circuit
- Pilot Pressure Circuit
- Accumulator Circuit
